M-series all stainless steel wheels

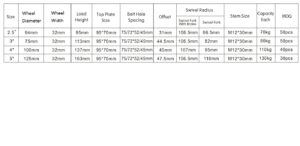

1.Specification:

Capacity Each:70kg/80kg/110kg/130kg

Wheel Diameter:2.5 inch /3 inch /4 inch/ 5 inch

Wheel Width:32mm

Total Height:95mm/113mm/137mm/163mm

Top Plate Size:95*70mm

Bolt Hole Spacing:75*52mm/72*45mm

Hole Size:12*9mm

Hollow Size: ∅12.3mm

Threaded Size : M12*30mm

Swivel Fork Swivel Radius:66.5mm/52mm/95mm/110mm

Swivel Fork with Lock Swivel Radius:106.5mm/107mm

Fork: 304/316 stainless steel ,rigid / top plate swivel /top plate swivel +metal total lock /top plate swivel + plastic total lock /top plate swivel + side lock / hollow / hollow +metal total lock/ hollow + plastic total lock / hollow+ side lock

Plate/Frame thickness: 2.5mm/2.3mm

Wheel Material:Stainless steel

Bearing:Double stainless steel bearings



2.Packing:

Package:Blank cardboard box.



3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

1.High-quality Materials: Our M Series 2.5″ – 5″ stainless steel casters are constructed with SUS 304 solid stainless steel, which guarantees superior resistance to heat and chemical damage. These durable caster wheels offer long-lasting performance, making them an ideal choice for industries.



2.Robust Bearing System: Equipped with 304 double ball bearings, our casters can support a load capacity of 70 – 130kgs, ensuring smooth mobility and reliability in your applications.



3.Versatile Dimension Options: Choose from a range of wheel diameters and widths (2.5″ – 5″ and  32mm respectively) to find the perfect caster wheels for your specific needs.



4.Customization and OEM Support: Our caster wheels are customizable to meet your unique requirements. We offer OEM support to help you create the perfect solution for your specific applications.



5.Environmentally Friendly: The stainless steel construction and heat-resistant properties of our casters contribute to a more eco-friendly solution, making them an excellent choice for businesses committed to sustainability.
