M-series PA wheels

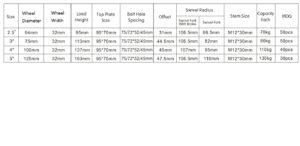

1.Specification:

Capacity Each:70kg/80kg/110kg/130kg

Wheel Diameter:2.5 inch /3 inch /4 inch/ 5 inch

Wheel Width:32mm

Total Height:95mm/113mm/137mm/163mm

Top Plate Size:95*70mm

Bolt Hole Spacing:75*52mm/72*45mm

Hole Size:12*9mm

Hollow Size: ∅12.3mm

Threaded Size : M12*30mm

Swivel Fork Swivel Radius:66.5mm/52mm/95mm/110mm

Swivel Fork with Lock Swivel Radius:106.5mm/107mm

Fork: 304/316 stainless steel ,rigid / top plate swivel /top plate swivel +metal total lock /top plate swivel + plastic total lock Plate/Frame thickness: 2.5mm/2.3mm

Wheel Material:PA(nylon)

Bearing:NA /double ball bearings / double stainless steel bearings

2.Packing:

Package:Blank cardboard box.

3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

1.Durable and Adaptable: Designed with stainless steel forks are built to withstand various environments and strong corrosion resistances,good high temperature resistance,and excellent wear resistance. It is not easy to rust and damage, and has a long service life.



2.High strength: It can withstand large weight and pressure, ensuring stable operation under heavy load.



3.Multiple wheel materials and Installation Options: Customize your cart or equipment with our range of wheel materials including nylon wheel and rubber wheel. Pick from three unique installation types including fixed,swivel,swivel with total lock,swivel with side lock to perfectly suit your application needs.



4.Beautiful appearance: It has a unique metallic texture, simple and generous, and can enhance the overall image of equipment or items.



5.Wide range of application scenarios: It can be used in factories, offices, logistics and transportation, harsh outdoor environments, humid environments, or environments containing corrosive gases or liquids, etc.
