M series TPR wheels

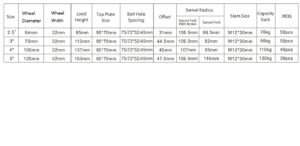

1.Specification:

Capacity Each:70kg/80kg/110kg/130kg

Wheel Diameter:2.5 inch /3 inch /4 inch/ 5 inch

Wheel Width:32mm

Total Height:95mm/113mm/137mm/163mm

Top Plate Size:95*70mm

Bolt Hole Spacing:75*52mm/72*45mm

Hole Size:12*9mm

Hollow Size: ∅12.3mm

Threaded Size : M12*30mm

Swivel Fork Swivel Radius:66.5mm/52mm/95mm/110mm

Swivel Fork with Lock Swivel Radius:106.5mm/107mm

Fork: 304/316 stainless steel ,rigid / top plate swivel /top plate swivel +metal total lock /top plate swivel + plastic total lock /top plate swivel + side lock / hollow / hollow +metal total lock/ hollow + plastic total lock / hollow+ side lock

Plate/Frame thickness: 2.5mm/2.3mm

Wheel Material:TPR(rubber)

Bearing:Single ball bearing / single stainless steel bearing

2.Packing:

Package:Blank cardboard box.

3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

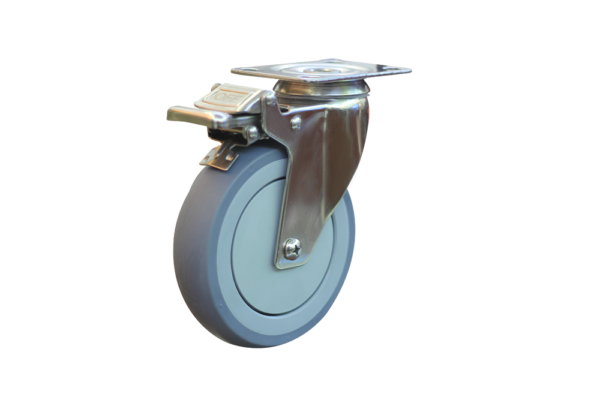

1.Durable Material Selection: The medium duty top plate 304/316 Stainless Steel TPR locking swivel caster wheels with lock are made of high-quality stainless steel and Thermoplastic Rubber, ensuring a long-lasting, corrosion-resistant product that is suitable for demanding medical applications.

2.Robust Load Capacities: These caster wheels have a load capacity of 80kg-130kg, making them ideal for supporting various medical equipment and ensuring smooth transportation across different surfaces.

3.Customization Options: The product offers a wide range of customization opportunities through its support of OEM, ODM services. This enables users to create tailored solutions that meet the specific needs of their project or application.

4.Secure Locking Mechanism: The TPR locking swivel caster wheels feature a reliable locking mechanism that ensures the stability and safety of the medical equipment in use. This ensures a secure transportation experience for both patients and medical staff.

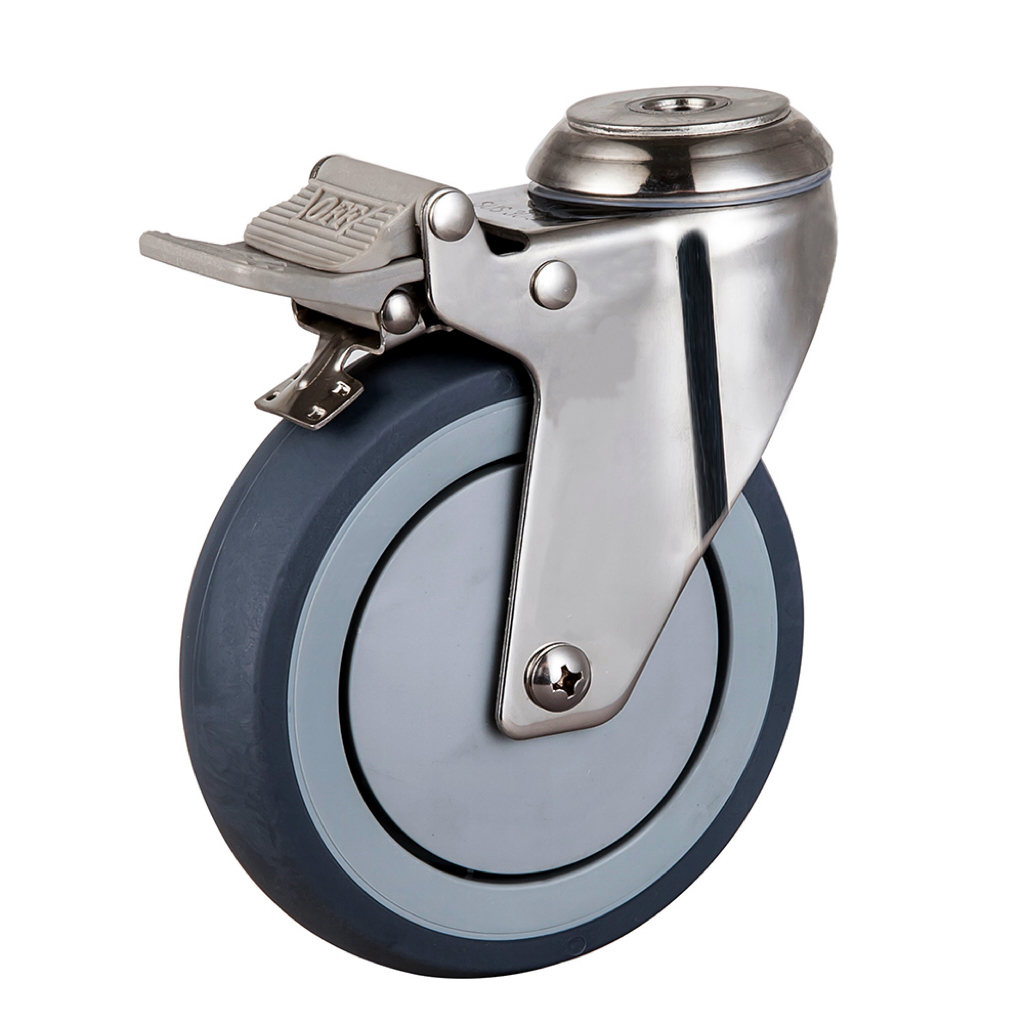

5.Versatile Mounting Options: The product is available in different mounting styles such as plate casters, stem casters, bolt-hole casters, and side-mount casters. This versatility allows users to select the optimal mounting style for their specific medical equipment or application. These caster wheels are compatible with various equipment, ensuring smooth and efficient movement in medical settings.
