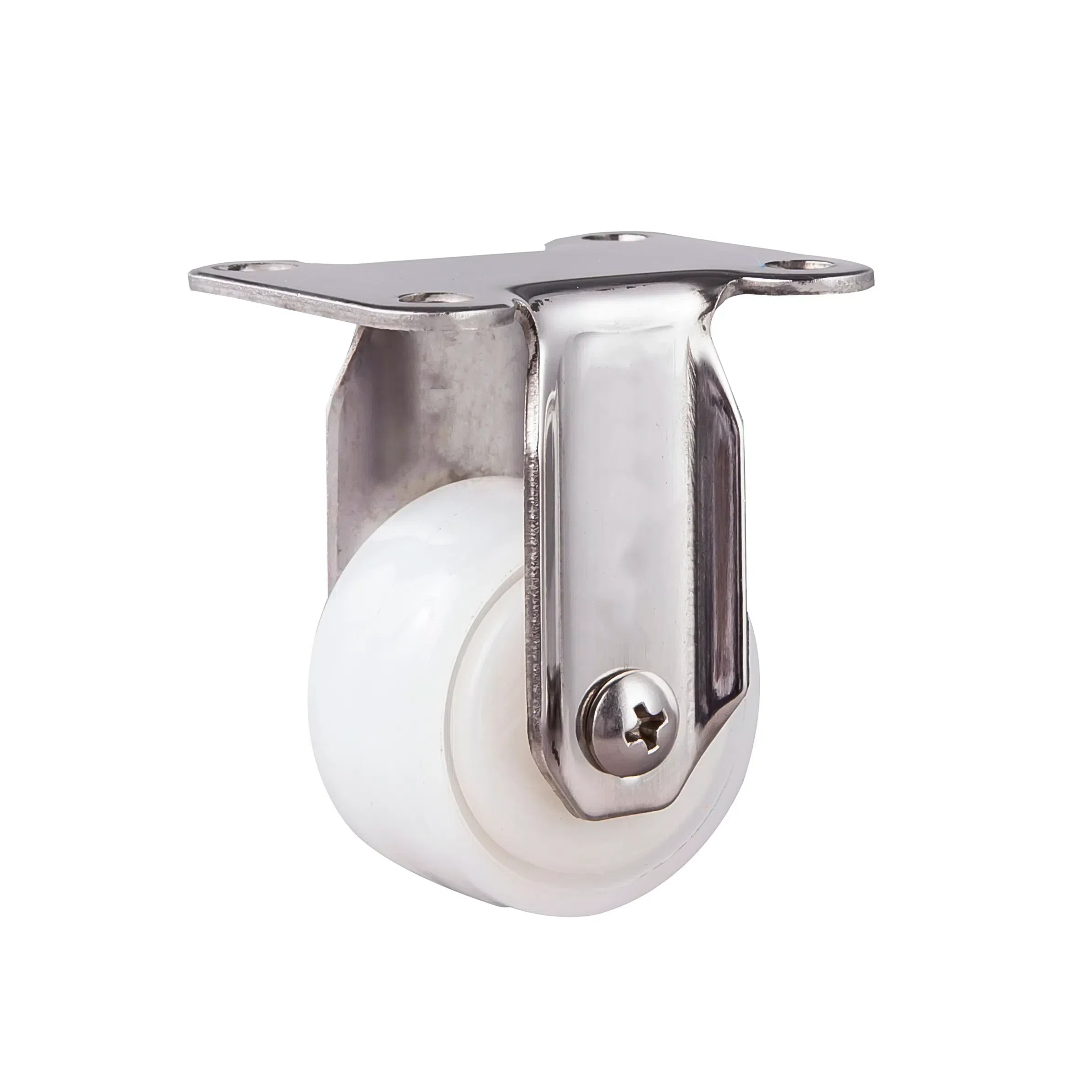

S series PA wheels

1.Specification:

Capacity Each:30kg/50kg

Wheel Diameter:1.5 inch/2 inch

Wheel Width:20mm/22mm

Total Height:60mm/70mm

Top Plate Size:54*44mm

Bolt Hole Spacing:40*30mm

Hole Size:6.3mm

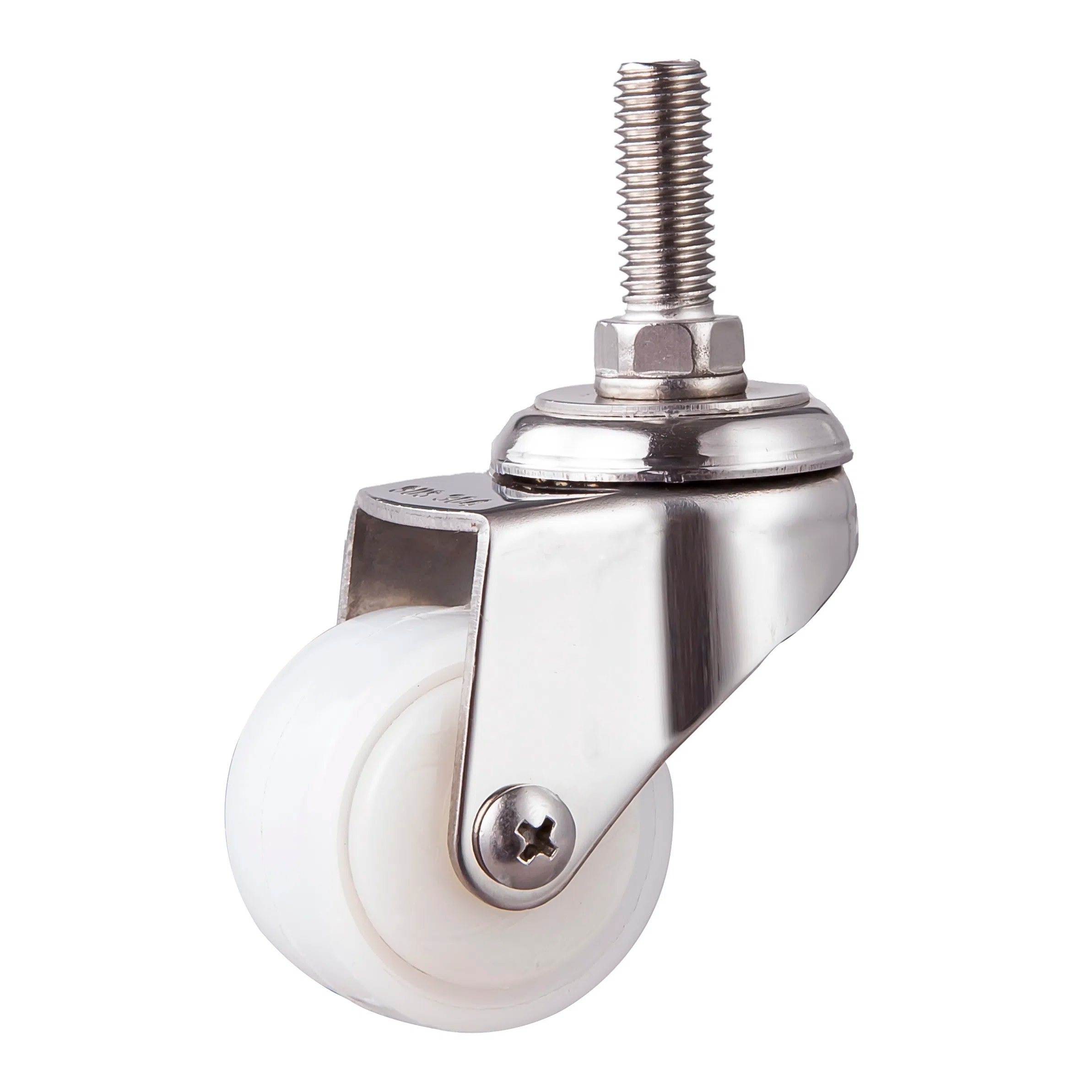

Threaded Size: M10*25mm

Swivel Radius:45.5±2mm/68±2mm

Fork: 304 / 316 stainless steel ,rigid / top plate swivel /top plate swivel +total lock /threaded /threaded+total lock

Plate/Frame thickness: 2.0mm

Wheel Material:Nylon

Bearing:NA



2.Packing:

Package:Blank cardboard box.



3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

1.Durable and Adaptable: Designed with stainless steel forks are built to withstand various environments and strong corrosion resistances,good high temperature resistance,and excellent wear resistance. It is not easy to rust and damage, and has a long service life.

2.High strength: It can withstand large weight and pressure, ensuring stable operation under heavy load.

3.Multiple wheel materials and Installation Options: Customize your cart or equipment with our range of wheel materials including PA wheel and rubber wheel. Pick from three unique installation types including fixed,swivel,swivel with total lock,threaded stem,threaded stem with total lock to perfectly suit your application needs.

4.Beautiful appearance: It has a unique metallic texture, simple and generous, and can enhance the overall image of equipment or items.

5.Wide range of application scenarios: It can be used in factories, offices, logistics and transportation, harsh outdoor environments, humid environments, or environments containing corrosive gases or liquids, etc.
