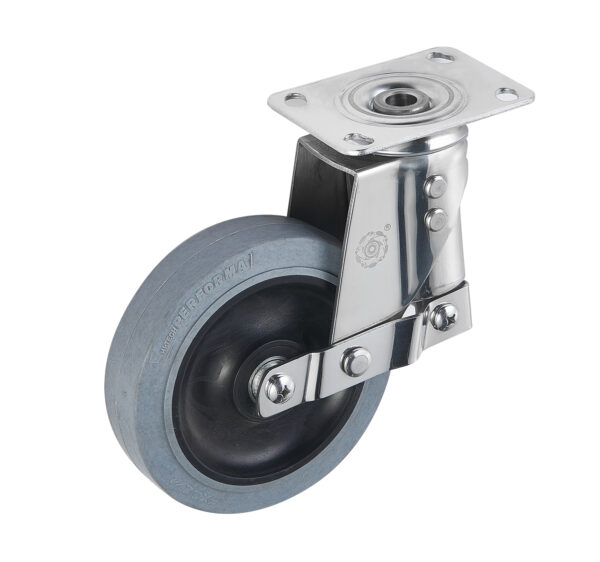

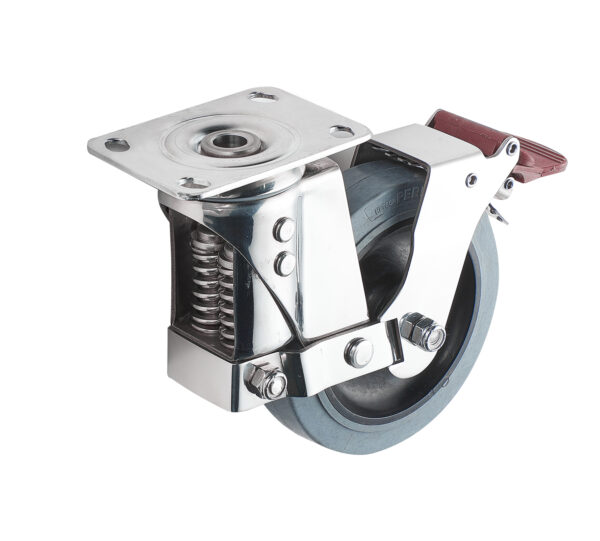

Z-series conductive wheel (stainless steel bracket)

1.Specification:

Capacity Each:70kg/100kg/120kg

Wheel Diameter:3 inch /4 inch/ 5 inch

Wheel Width:32mm

Total Height:113.5mm/138mm/165.3mm

Top Plate Size:95*70mm

Bolt Hole Spacing:75*52mm/72*45mm

Hole Size:12.81*9mm

Swivel Fork Swivel Radius:117.5mm/134mm/145mm

Swivel Fork with Lock Swivel Radius:152.5mm/165.5mm/175mm

Spring Distance:10mm/12mm/16mm

Fork: 304/316 stainless steel fork , rigid /top plate swivel /top plate swivel +plastic total lock

Plate/Frame thickness: 3.0mm/2.3mm

Wheel Material:Conductive wheel(rubber)

Bearing:Single ball bearing

2.Packing:

Package:Blank cardboard box.

3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

1.Static electricity dissipation and protection

The most notable feature of conductive casters is its excellent conductivity. In static-sensitive fields such as electronics, semiconductors, and medical care, the accumulation of static electricity may lead to serious consequences such as equipment damage, data loss, and even fires. Conductive casters can effectively introduce static electricity into the ground through its internal conductive network to achieve rapid dissipation of static electricity, thereby protecting the safety of equipment and operators.



2. Improve work efficiency

In automated production lines and precision instrument operating environments, static interference may affect the normal operation and measurement accuracy of the equipment. The application of conductive casters reduces downtime and maintenance costs caused by electrostatic interference, and improves production efficiency and product quality.



3. Wide range of environmental adaptability

Conductive casters inherit the excellent weather resistance and aging resistance of conductive materials and can maintain stable performance under a variety of environmental conditions.



4. Extend service life

The improvement in weather resistance and aging resistance means that conductive casters are not prone to aging, cracking or deformation during use, thus significantly extending their service life.



5. Fire retardant

Some conductive casters also have fire-retardant properties.



6. Environmentally friendly and non-toxic



Conductive casters strictly follow environmental protection standards during the production process and do not add toxic and harmful substances, such as halogens, heavy metals and carcinogens.
