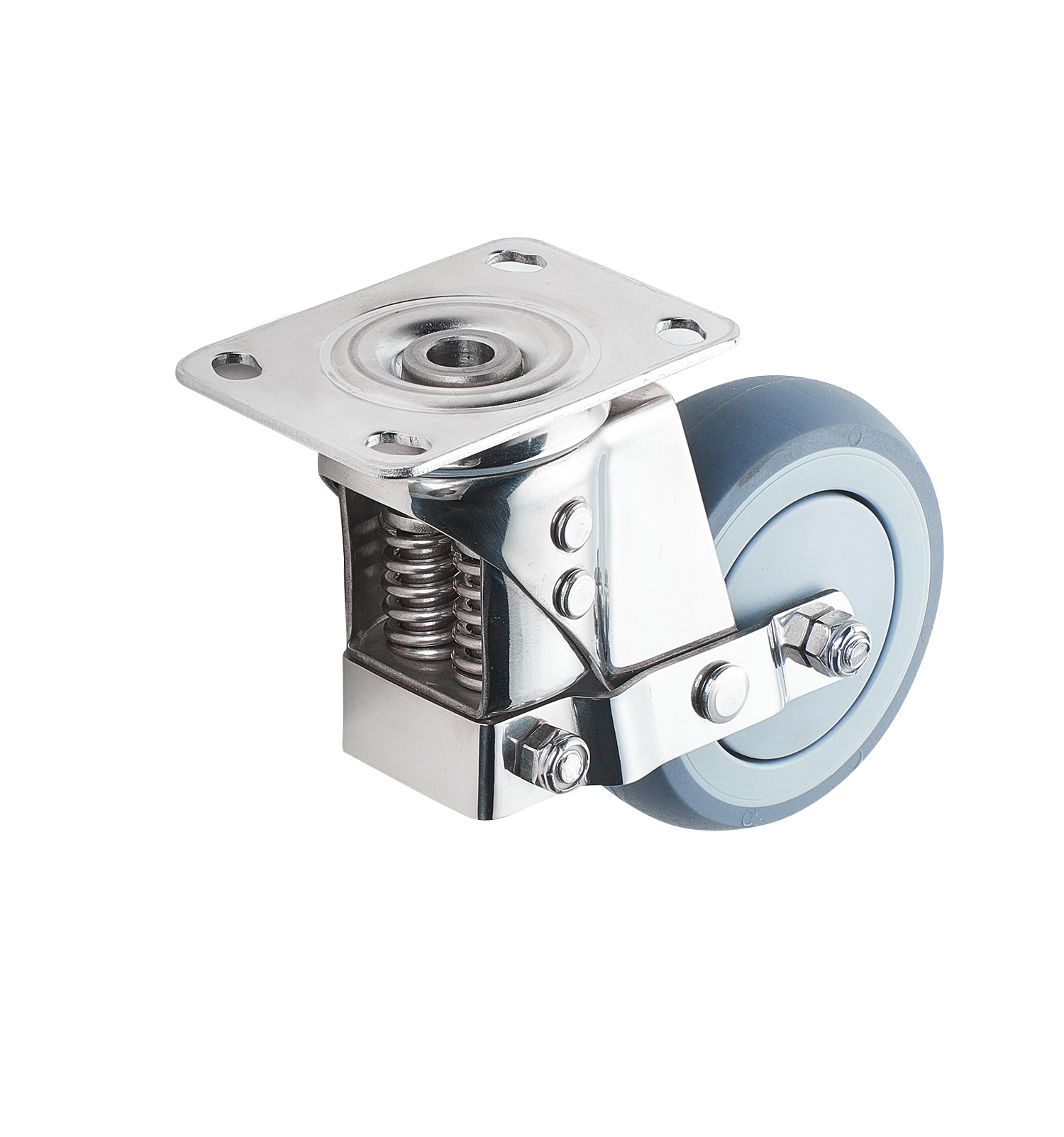

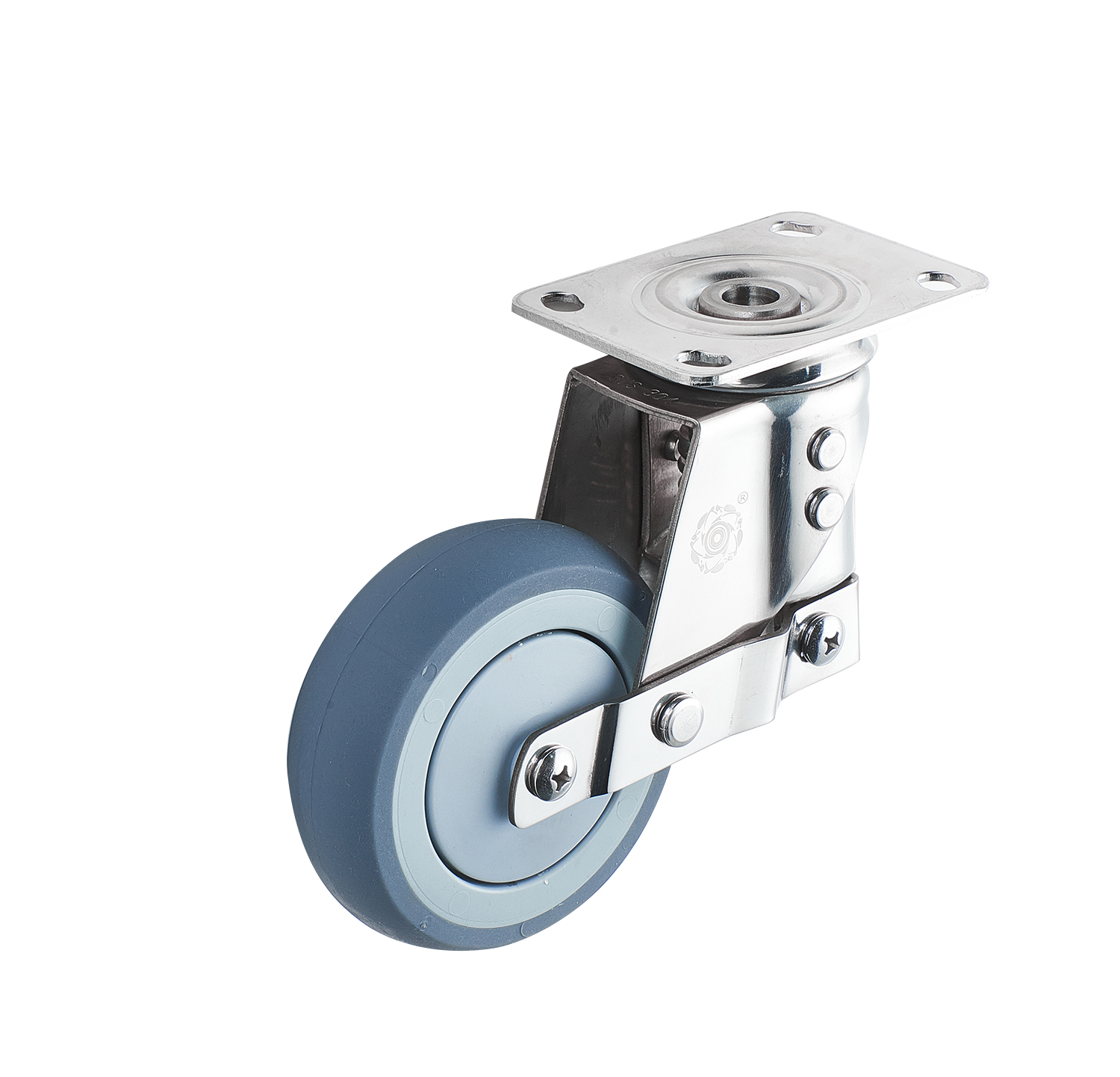

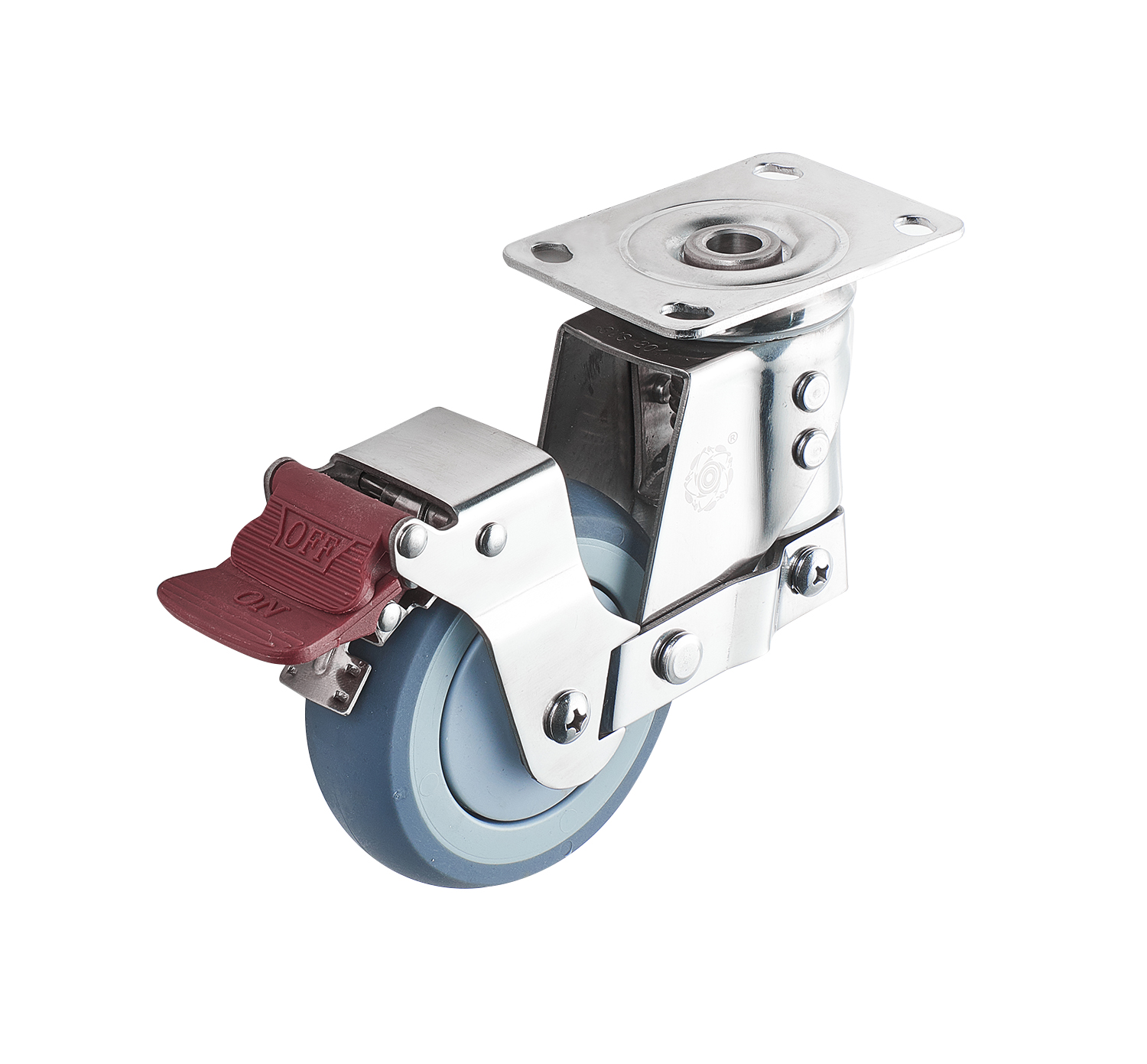

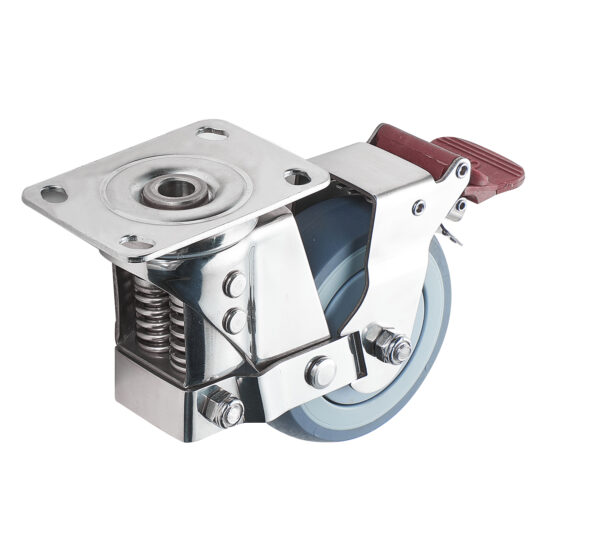

Z series TPR wheel (stainless steel bracket)

1.Specification:

Capacity Each:70kg/100kg/120kg

Wheel Diameter:3 inch /4 inch/ 5 inch

Wheel Width:32mm

Total Height:113.5mm/138mm/165.3mm

Top Plate Size:95*70mm

Bolt Hole Spacing:75*52mm/72*45mm

Hole Size:12.81*9mm

Swivel Fork Swivel Radius:117.5mm/134mm/145mm

Swivel Fork with Lock Swivel Radius:152.5mm/165.5mm/175mm

Spring Distance:10mm/12mm/16mm

Fork: 304/316 stainless steel fork , rigid /top plate swivel /top plate swivel +plastic total lock

Plate/Frame thickness: 3.0mm/2.3mm

Wheel Material:TPR(rubber)

Bearing:Single ball bearing

2.Packing:

Package:Blank cardboard box.

3.Customization available

4.Value-added service: Free laser customer brand logo on the bracket

5.Selling point:

1.High-Quality Factory Price: Enjoy unbeatable value with our factory-direct pricing, ensuring you receive only the best quality castor wheels at the most competitive prices.



2.Durable and Adaptable: Designed with stainless steel fork and TPR wheel material, our swivel wheels are built to withstand various environments and loads up to 100kg while maintaining smooth mobility.



3.Multiple wheel materials and Installation Options: Customize your cart or equipment with our range of wheel materials including TPR wheel and conductive wheel. Pick from three unique installation types including fixed,swivel,swivel with total lock to perfectly suit your application needs.



4.Shock Absorbing Feature:The shock-absorption wheels are made of high-quality impact-resistant and shock-resistant springs, which greatly improve the force-bearing performance and prevent the wheels from being damaged by vibration on uneven surfaces.



5.Customized Support: Based on our experienced R&D team, we offer customized support tailored to your unique requirements, enabling you to create a unique product that perfectly aligns with your branding and vision.n.
